You can connect your SungRow Wallbox to us via the OCPP interface and load excess sun or cheap stock market stream. Manual control is also possible through integration.

Preparation

Around the SUNGROW Wallbox It is necessary to connect with us to activate the OCPP backend of the Wallbox.

Before starting the facility you have to connect to the internet And install the latest updates. This is done via the IENERGYCHARGE app from SungRow. Connection to the WLAN according to the instructions of SungRow: https://ger.sungrowpower.com/upload/file/20240130/DE_UM_AC011E-01_Benutzerhandbuch.pdf In our experience, the following approach has proven itself:

1. Separate the wall box from the power grid for 10 seconds

2. After the restart, the Wallbox opens a WLAN hotspot

3. Log with the password Admin123 in the WLAN hotspot

4. Open the Browser and give the IP address in the address line (192.168.4.1) the wall box.

5. Then you can use the Scc666 Log into the Wallbox menu.

6. Press open [Network settings] and carry the Name of your WLANS and the WLAN access data a.

7. Copy the OCPP link now and also add it to the [Network settings] In addition. It is important that the URL with wss:// begins and the Port 443 As shown in the picture, it is supplemented.

8. Behind the URL, the Wallbox complements automatically Your id. Click on [Confirm] and takes over the settings. The wall box is restarted and connects to the backend.

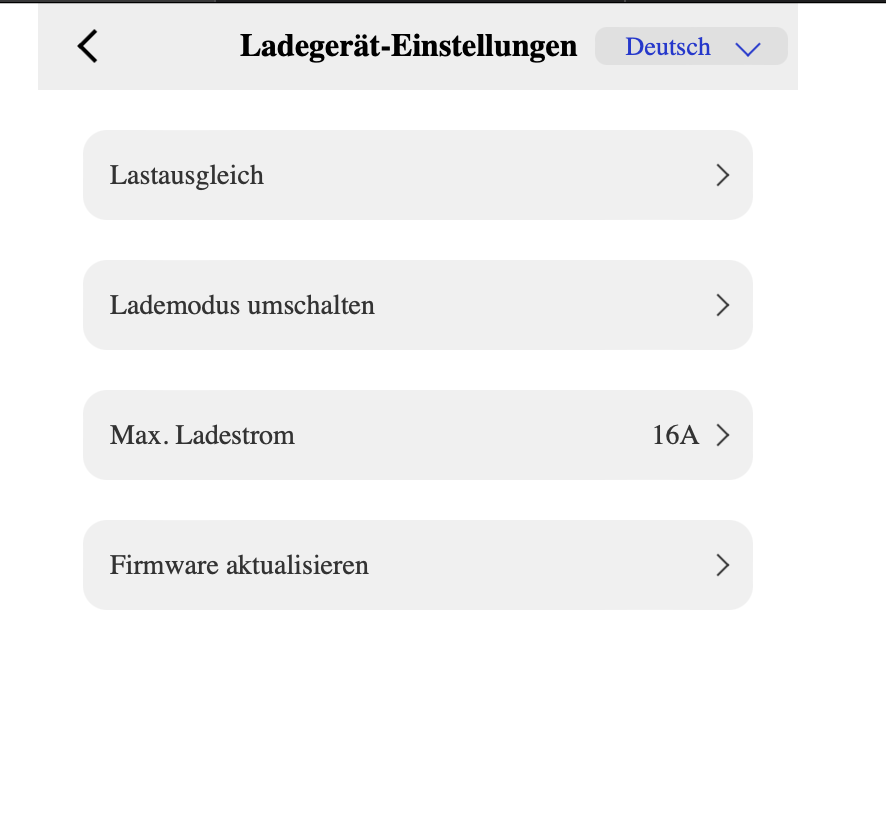

9. Make sure that the load compensation deactivated and the maximum charging current is not set too low.

10. In our app, the Wallbox dives with its Serial number To choose from. If this does not happen, you can also cancel the facility in our app and restart. It can also up to 10 minutes It is time for the wall box to connect.

⚠️ In order to get the first status from the Wallbox, a charging process may have to be started.
