Step 1: Connect yourself to that WLAN (Hotspot)that is issued by your charging station. All EVC04 models have a WLAN hotspot function that is activated by default. The following access data can be used to access the Internet signal of your charging station:
WLAN name or SSID: Serial number of your charging station
Password: Chargebox-ID
Step 2: After you have connected to the WLAN hotspot network, you can open the web browser from a computer or a mobile device. Give the URL section 192.168.1.1 One is the IP address of the charging station.

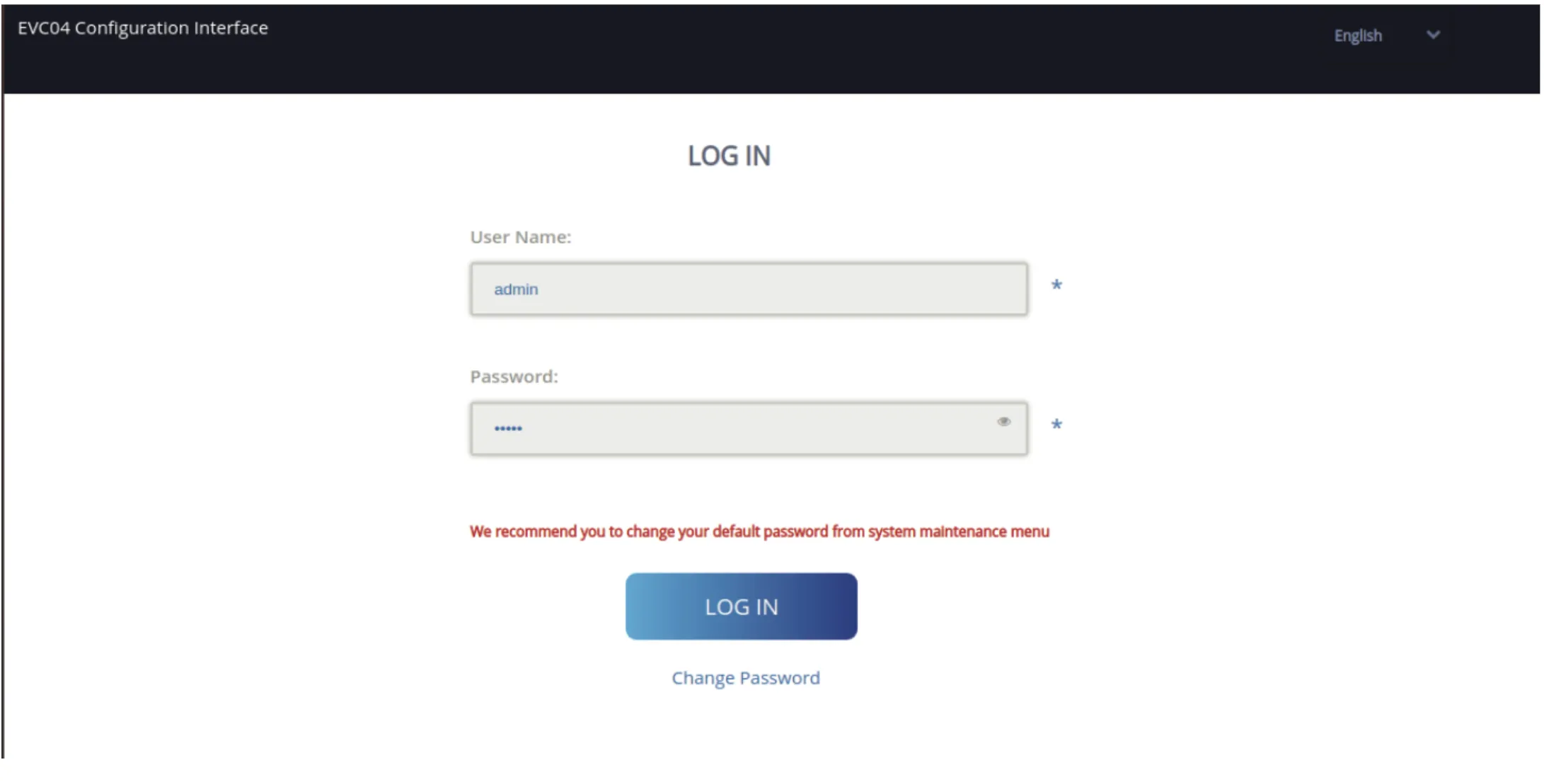

Step 3: As soon as you have entered the URL, you will become the Webui registration page forwarded. Use the following registration data to register at the web interface:
- User name: admin
- Password: admin

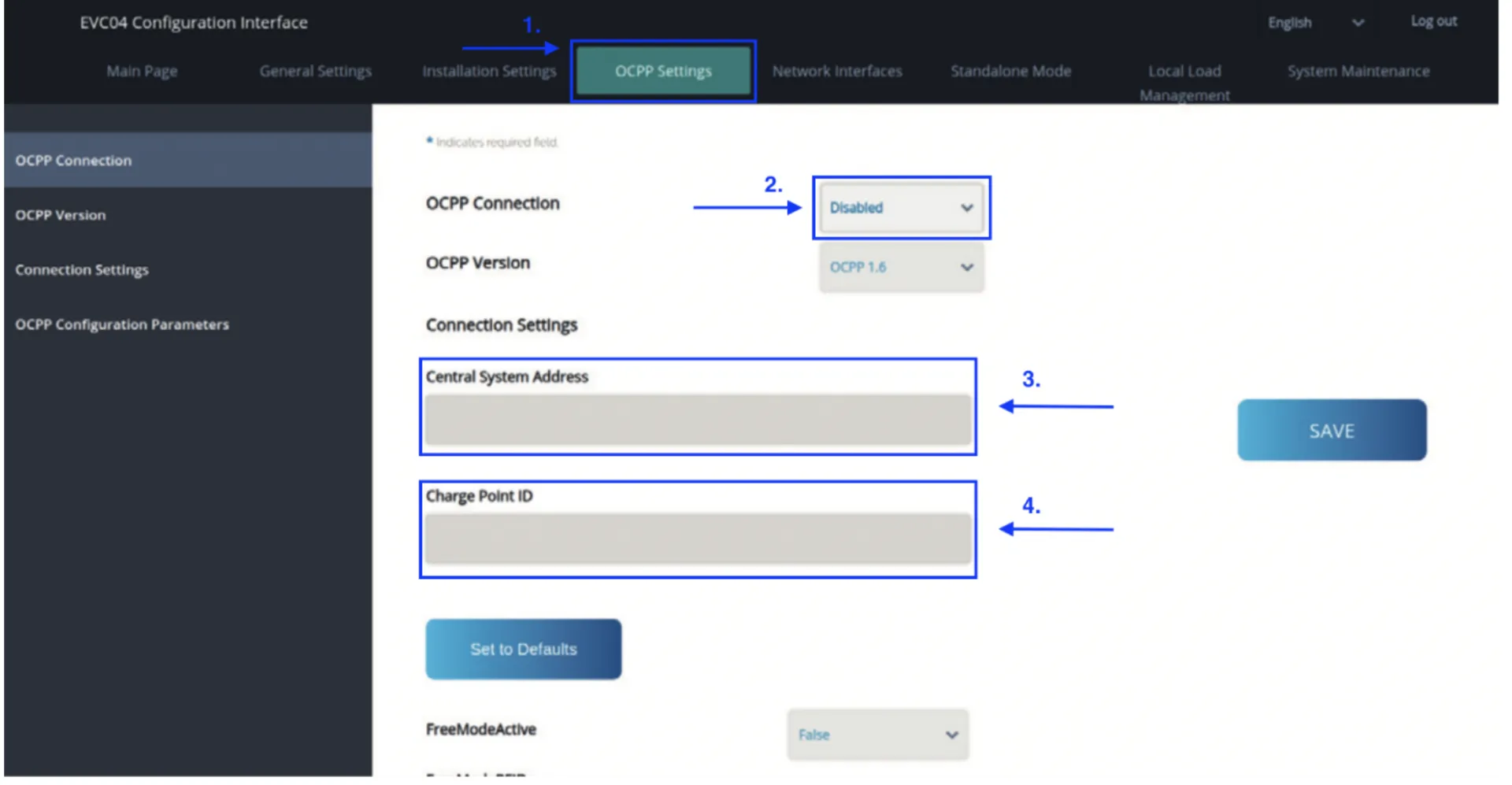

Step 4: As soon as you are in the webui, go to the OCPP Settings and activate the OCPP Connection. Copy the OCPP link from the app:
Then you have to enter the following information:
- Central System adress: ws://cleverpv-ocpp.azurewebsite.net/ocpp/XXXXXX
- Charge Point ID: *Here you enter your charging station identification *

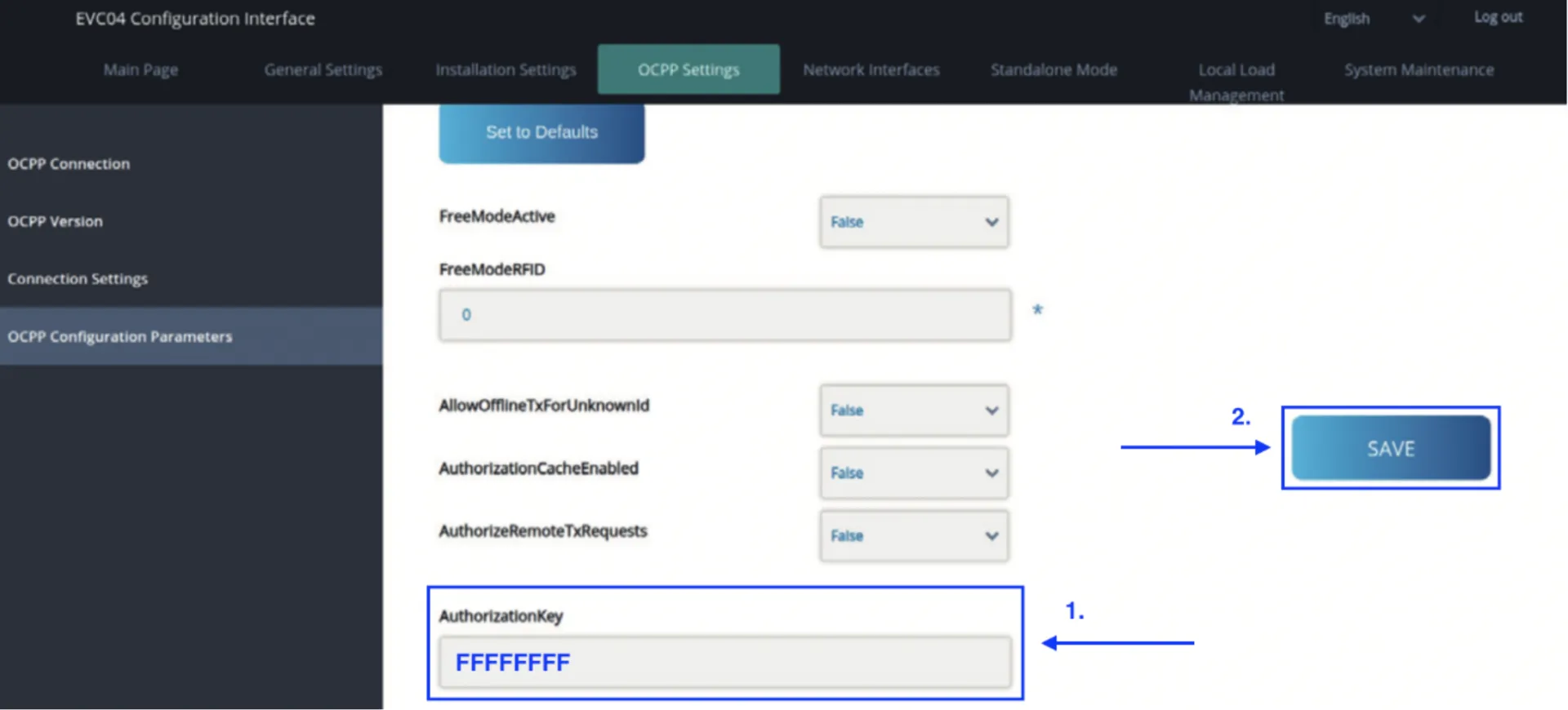

Step 5: Scroll down to the field AuthorizationKey and give Ffffffff a.
Step 6: Click on Save.
​Step 7: Now connect your charging station to the Internet. Navigate to the section Network Interfaces and choose WiFi. Enter the following data there:
- SSID: The exact name of your WLAN
- Password: The password of your WLAN
Step 8: After filling out the information, please click on Save.
