You can add your wallbox from Compleo / Innogy / E.ON to our network. To do so, proceed as follows:
To establish a backend connection via OCPP, the firmware of the
eBOX 1.1.16 or higher. Read chapter 6.3.2 how to update the firmware
can carry out.
ECU → "ACCU"
To set up a connection to a backend via OCPP, you must first configure the
Adjust the operating mode and the backend protocol.
Navigate to the menu item “ECU” and select the tab “ACCU”.
then set the “Operation-Mode” field to “b2b” and change the backend protocol
to “OCPP-generic”.

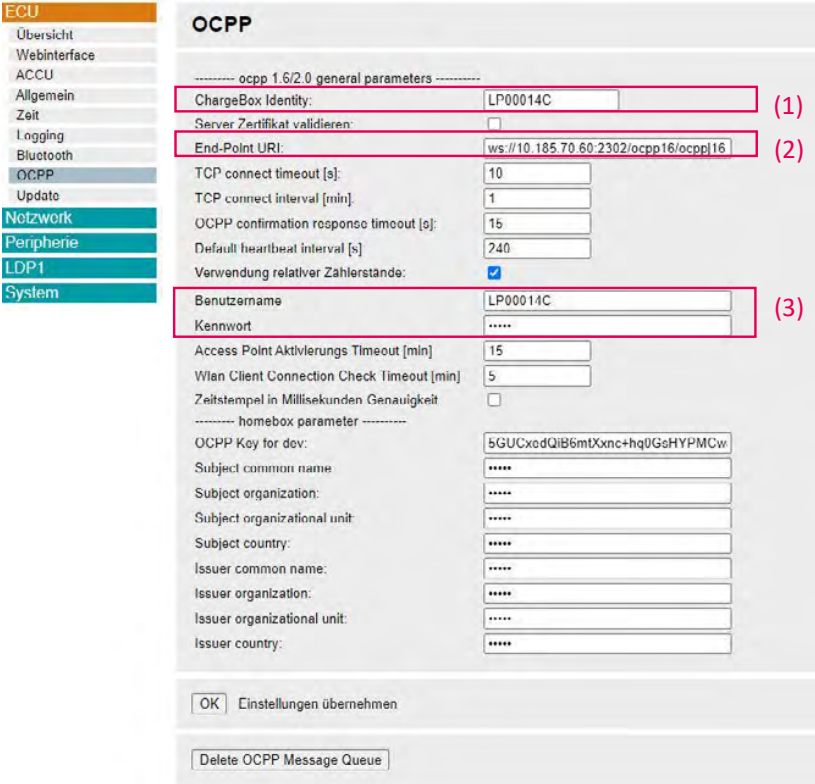

ECU → „OCPP“
Then switch to the “OCPP” tab. Here you have the option to
Chargebox ID (1), the endpoint URL (2), the user name and password (SIM) (3)
These parameters form the basis for a successful connection to a
any OCPP-based CPO backend.
Note: Please do not change the Homebox parameters, they have no effect
to a connection to your backend.
